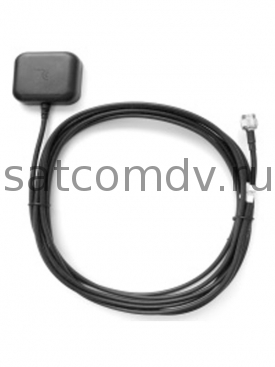

Hirschmann IRD-MX Magnetic Mount Antenna (RG58LL coax)

The Hirschmann IRD-MX magnetic-mount antenna is a powerful Iridium antenna for mobile system installations. It has a low profile and a small footprint with RG58 low-loss coax for up to 5 m/16.4 ft cable length.
Part Number: HIRD-MX-0108

Overview
The Iridium magnetic-mount antenna (Part Number: HIRD-MX-0108) comes with a strong self-adhesive magnet pad which can be easily be replaced by an automotive grade double-sided adhesive pad to support permanent installations or installations on non-metallic surfaces. The cable length (up to 5 m/16.4 ft) of the RG58 low-loss cable and connector type can be customized to meet the customer’s needs within the limits of the Iridium requirements.

Features
Low profile (height 18 mm/0.7 in.)
Small footprint (63 x 63 mm/2.48 in. x 2.48 in.)
Magnetic mount
Customization of cable lengths, types and connectors possible
Adhesive patch for magnetic mount version available

Specifications
Length: 63 mm/2.48 in.
Width: 63 mm/2.48 in.
Height: 18 mm/0.7 in.
Weight: approx. 150 g/5.3 oz
Operating temperature range: -40°C to +80°C/-40°F to +176°F

.
